RaceChip One – the best in its class
Absolute driving pleasure at an unbeatable price
Don't be fooled by the attractive price of RaceChip One. Our entry-level performance chip still gives you all the benefits that come from the expertise of the global chip tuning market leader. The hardware and software are specially designed for your car and make use of developments in our premium products.
Even with RaceChip One, you gain access to much more of your car’s power reserves. You'll enjoy driving on another level – you'll feel the extra power, sense the greater torque and appreciate the ability to save fuel. The One makes driving a sensational experience.
The One – a real RaceChip in
quality and function
- +20% more
power and torque
- Better fuel
- Optional engine
- Easy installation
The One has many of the typical RaceChip quality features. The optimization software is specially designed for your engine and has gone through an exhaustive series of test in the lab and on the road.
Our Engine Protect System ensures that the increased power is produced only within your engine's normal rev range. And of course, we only use high-quality hardware components.

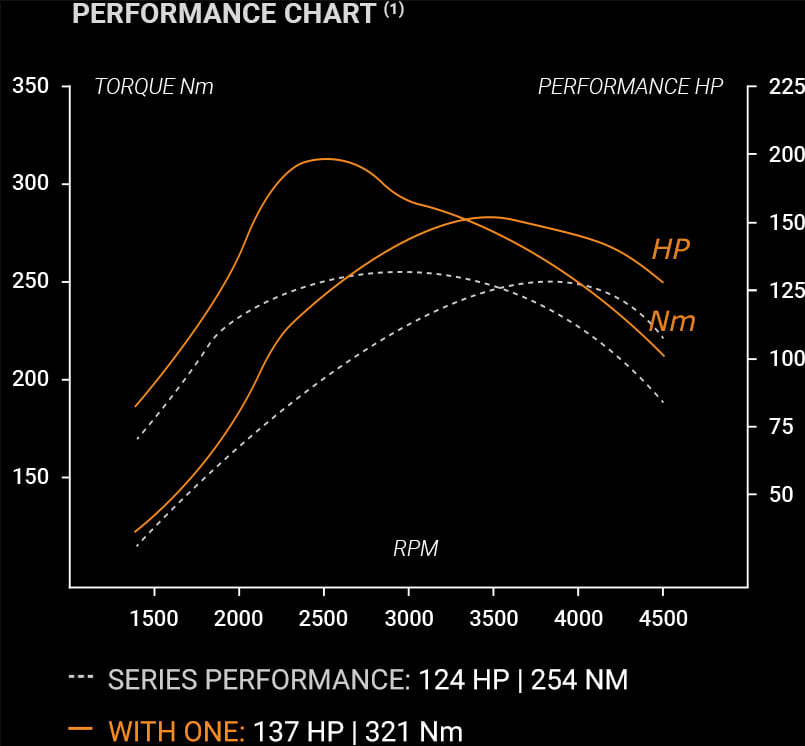

+20% power and torque
The tuning software in the One is specially designed for your car to optimize your engine's electronic signals. This provides a significant boost to the horsepower and torque within the available power reserves. You'll enjoy added power, dynamics and mid-range acceleration.
Better fuel economy
RaceChip One increases power while helping you save fuel and money. Savings up to 15% are possible. Torque optimization is the key to this success. The equation is pretty simple: more torque = earlier upshifts = reduced fuel consumption = lower costs.
Optional engine warranty
We have 100% confidence in the quality of the RaceChip One. You can benefit from our confidence through the RaceChip engine warranty (optional for the One but included with the Pro 2 for 1 year and for 2 years with the Ultimate). For just 59 EUR, you can protect your car for a year. In the unlikely event of damage, RaceChip won’t leave you alone.
The RaceChip engine warranty is available in the following countries: Austria, Belgium, Denmark, Finland, Germany, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
2-year product warranty
Only high quality components are used in the RaceChip One. The housing is heat-resistant and the connection to the engine electronics is very secure. We provide a 2-year product warranty for the One.
Easy installation and removal
You don't have to be an expert to install the One. Easy do-it-yourself installation in just a few minutes – that's the RaceChip Plug&Drive promise. It makes your entry into the world of performance improvement easy and hassle-free.
Get the optional engine warranty for the One
Benefit from the RaceChip quality and warranty package
- All major engine components covered
- No deductible
- Up to 100,000 km and 3 years
- Up to 10,000 EUR in event of damage
- Still applies after the manufacturer’s warranty has expired
- One year’s additional peace of mind for just N/A EUR
With the One, you’re safely on your way
Warranty for performance chip and engine+
When you buy a RaceChip One, you have the option of purchasing a 1-year engine warranty. For just N/A EUR it covers all major engine and powertrain components. In any case, a 2-year product warranty is included.
Engine Protect System+
Our optimization software ensures that the RaceChip works only within your engine’s safe rev range. When you get close to the red line or go into the red, the chip automatically shuts down so that your engine is running in stock condition again. As soon as the revs drop, the chip turns on again. Our Engine Protect System is that simple and safe. And it works in addition to any existing protection systems installed by the manufacturer.
Premium hardware components+
We use only high quality components in the RaceChip One. The processor was designed especially for the operating conditions found in cars. The housing is heat-resistant and the connection to the engine electronics is very secure.
- Vehicle-specific optimization software
- Software performance parameters can be set manually
- Engine Protect system
- N/A Mhz processor
- Simple D-Sub connector
- PCB with nano water protection
- L: 6,1 x B: 6,8 x H: 2,5
PreparationFirst, open the bonnet and remove the engine cover as shown in the example for the VW Passat (B8) 2.0 TDI with 110kW.
Locating the connection in the engine bayOnce the wiring harness is connected, the entire setup should look like the image below. The RaceChip wiring harness is connected to the sensors at the points marked A and B.
Connection to the common rail sensor (A)First, the connection to the common rail sensor (A) needs to be made. Pull out the plug by its sensor. Note: only pull on the plug, never the cable.
Common rail sensor (A)Here you can see the disconnected plug of the common rail sensor (A), as well as the corresponding mating part on the wiring harness of your chip.
Connecting the wiring harnessNow connect the disconnected plug (A) to the corresponding socket on the wiring harness. Make sure that the plugs have engaged.
Connecting the common rail sensor (A)Connect the second plug of this wiring harness arm to the common rail sensor (A) so that it engages.
Connection to the turbo-boost pressure sensor (B)Next, the connection to the turbo-boost pressure sensor (B) needs to be made. Pull out the plug by its sensor
Turbo-boost pressure sensor (B)The image above shows the disconnected plug of the turbo-boost pressure sensor (B), as well as the section of the RaceChip wiring harness that has not yet been used.
Connecting the wiring harnessConnect the disconnected plug (B) to the corresponding socket on the RaceChip wiring harness. Ensure that the plugs engage properly.
Connection to the turbo-boost pressure sensor (B)Connect the remaining plug on the wiring harness to turbo-boost pressure sensor (B). Push it into the mating piece so that it engages.
Connecting the RaceChip OneYour engine is about to get more power. Connect the RaceChip One to the D-sub connector of the wiring harness.
Final stepsSecure the cable and the RaceChip One at a suitable point in your engine bay and then fasten the cover. All done! Now have fun driving!
